DNS servers

Speaker : Benoit Tellier

Retrieve this presentation online : https://rawgit.com/chibenwa/openup02_02/master/presentation/index.html
And on GitHub

Objectives

  • Revision of the DNS protocol
  • Use the hosts file
  • Basic use of Bind DNS server
  • Bind slavery
  • Managing DNS zones
  • Delegating zones
  • Securing a DNS server

About the DNS protocol

Why do we need DNS ?

  • Goolge : 74.125.68.100
  • Yahoo : 98.139.183.24
  • YouTube : 216.58.196.174
  • Facebook : 66.220.156.68
  • Twiter : 104.244.42.193
  • AirBNB : 23.23.155.255
  • IPV6 looks like that : 2001:db8::123:4567:89ab:cdef
  • I prefer using google.com, yahoo.com, etc...

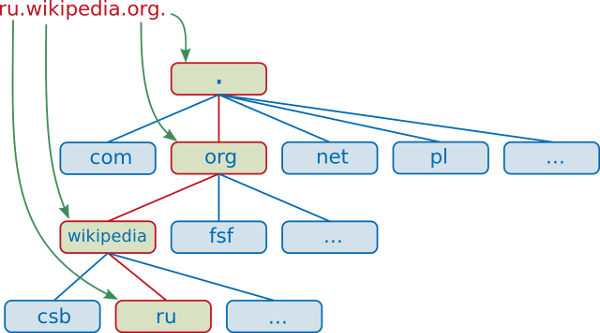

Domain names

Fully qualified domain names : wiki.minet.net. adh5.minet.net.

Non fully qualified domain names : wiki adh5

HOSTS.txt

Address translation first threw HOSTS.txt file (~10)

Then centralization of the service... (1974)

Decentralization using DNS protocol in 1983

History on wikipedia

Top level domain

Example : com. vn. net. fr.

All have their administration rules, and their own prices

DNS root serves TLD

On wikipedia

Second level domain

Example : google.com. minet.net. yahoo.fr.

The ones you can by

On wikipedia

DNS architecture

Every site maintains a DNS server

SLD and subdomains

UDP and TCP 53

DNS zone

Unit of management for DNS declaration

Manages all or a portion of a domain

Managed by several servers

DNS zone delegation

Delegate a zone management to an other server

Allows information distribution of DNS

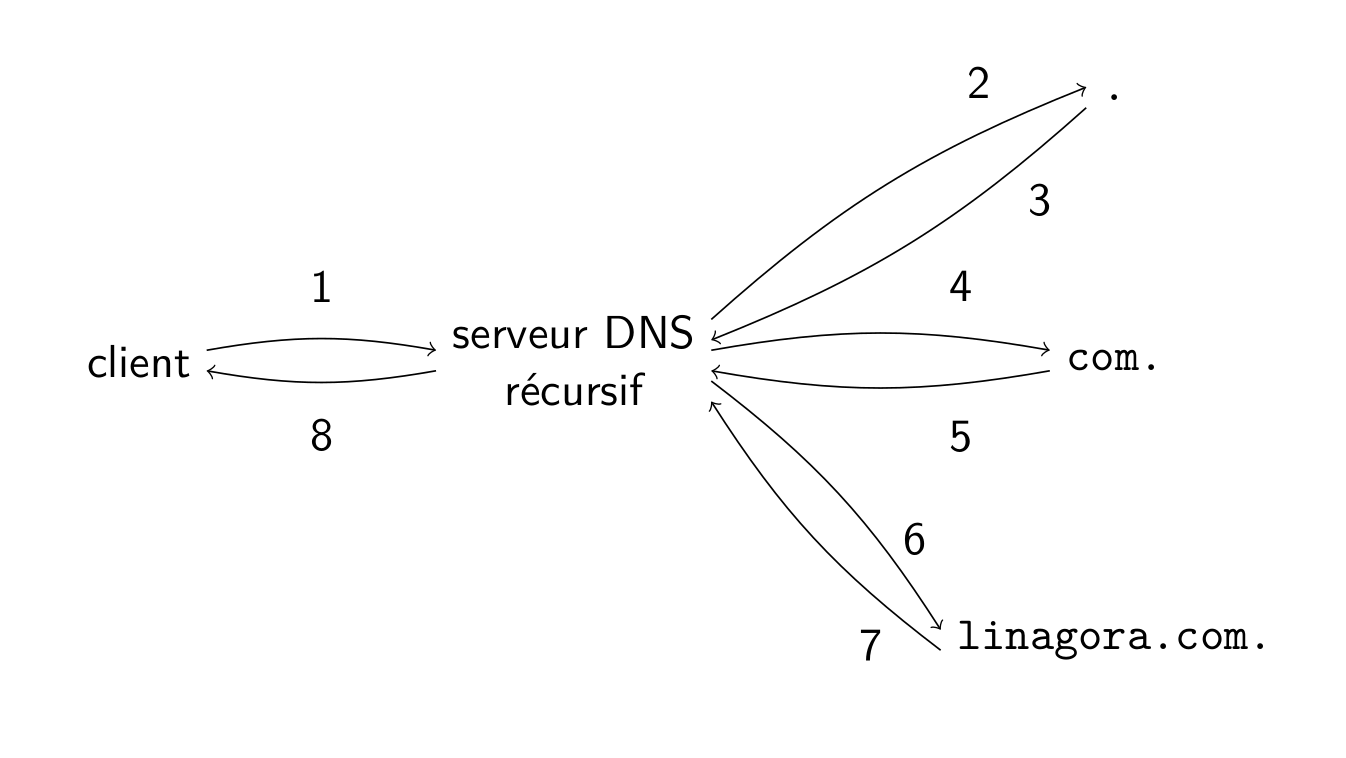

Recursive resolution

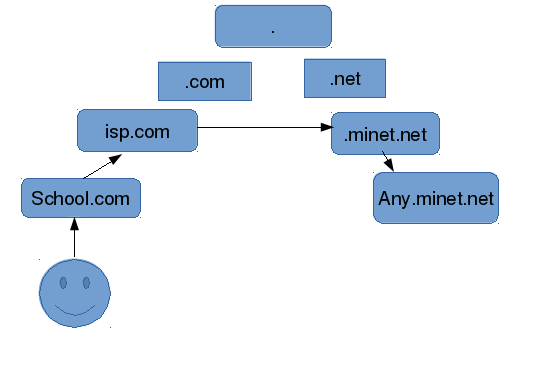

Introducing cache

Resolve DNS

nslookup google.com
Server:		8.8.8.8
Address:	8.8.8.8#53

Non-authoritative answer:
Name:	google.com
Address: 74.125.68.101
Name:	google.com
Address: 74.125.68.102
Name:	google.com
Address: 74.125.68.138
Name:	google.com
Address: 74.125.68.113
Name:	google.com
Address: 74.125.68.100
Name:	google.com
Address: 74.125.68.139

Select your DNS server using /etc/resolv.conf

DHCP

Reverse resolution

nslookup 157.159.40.103
Server:		8.8.8.8
Address:	8.8.8.8#53

Non-authoritative answer:
103.40.159.157.in-addr.arpa	name = revproxy.minet.net.

FQDN : 103.40.159.157.in-addr.arpa

Whois

 whois minet.net
   Domain Name: MINET.NET
   Registrar: GANDI SAS
   Sponsoring Registrar IANA ID: 81
   Whois Server: whois.gandi.net
   Referral URL: http://www.gandi.net
   Updated Date: 22-jun-2015
   Creation Date: 16-aug-1997
   Expiration Date: 15-aug-2016
....
Registrant Name: Association Minet
Registrant Organization: Minet
Registrant Street: 9, rue Charles Fourier
Registrant City: EVRY
Registrant Phone: +33.160766990
Registrant Email: minet@it-sudparis.eu

Discovering Bind

About bind

Berkeley Internet Name Domain

1980

Many other free DNS servers

Internet Systems Consortium since 1995

Web site

Documentation

Installing on Debian

apt-get install bind9
/etc/init.d/bind9 start | stop | reload | restart

named.conf

options
{
  directory "/etc/bind";
  listen-on-v6
  {
    any;
  };
  recursion yes;
};

# serveurs de la racine
zone "."
{
  type hint;
  file "named.cache";
};

forwarding

options
{
  forward first ;

  forwarders
  {
    203.0.113.51 ;
    203.0.113.52 ;
  } ;
} ;

named.cache

Contains root DNS ips

/etc/bind/db.root


.                   3600000 IN NS   A.ROOT-SERVERS.NET.
A.ROOT-SERVERS.NET. 3600000    A    198.41.0.4
A.ROOT-SERVERS.NET. 3600000    AAAA 2001:503:BA3E::2:30
;
; FORMERLY NS1.ISI.EDU
;
.                   3600000    NS   B.ROOT-SERVERS.NET.
B.ROOT-SERVERS.NET. 3600000    A    192.228.79.201
B.ROOT-SERVERS.NET. 3600000    AAAA 2001:500:84::B

Validating named.conf syntax

Command named-checkconf

$ named-checkconf
/etc/named.conf:11: unknown option ’recurion’

Managing zones

named.conf

acl esclaves
{
    192.0.2.51 ;
    203.0.113.33 ;
} ;

named.conf

zone "example.com"
{
  type master ;
  file "master/example.com" ;
  allow-transfer
  {
    esclaves ;
  } ;
} ;

named.conf

zone "100.51.198.in-addr.arpa"
{
  type master ;
  file "master/100.51.198.in-addr.arpa" ;
  allow-transfer
  {
    esclaves ;
  } ;
} ;

Being a slave

zone "example.org"
{
  type slave ;
  file "slave/example.org" ;
  masters
  {
    192.0.2.33 ;
  } ;
} ;

zone files

    Composed of :
  • Directives :
    • $INCLUDE
    • $ORIGIN
    • $TTL
  • Resource record

Resource record

Aaddress
AAAAIPv6 address
CNAMEcanonical name
MXmail exchange
NSname server
PTRpointer
SOAstart of authority

zone file example

$TTL 1d
@ IN SOA ns.example.com. (
                  2016022001 ; serial
                  8h         ; refresh
                  1w         ; expire
                  3h )       ; negative caching TTL

            NS       ns.example.com.
            NS       ns.example.org.

            MX    0  mail0.example.com.
            MX    10 mail1.example.com.

anakin      A        198.51.100.33
darkvador   CNAME    anakin

zone inverse example

$TTL 1d
@ IN SOA ns.example.com. (
                  2016022001 ; serial
                  8h         ; refresh
                  1w         ; expire
                  3h )       ; negative caching TTL

            NS       ns.example.com.
            NS       ns.example.org.

33          PTR      mail.example.com.
51          PTR      www.example.com.

Delegating zones

sub-domain    NS ns.sub-domain
ns.sub-domain A  198.51.100.33

Verofying zone files

named-checkzone example.com example.com
zone example.com/IN: loaded serial 2011102100
OK
$ named-checkzone example.com example.com
zone example.com/IN: example.com/MX ’mail.example.com’ has no address records (A or AAAA)
zone example.com/IN: loaded serial 2011102100
OK
$ named-checkzone example.com example.com
zone example.com/IN: NS ’ns.example.com’ has no address records (A or AAAA)
zone example.com/IN: not loaded due to errors.

dig command

dig google.com
;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 512
;; QUESTION SECTION:
;google.com.			IN	A

;; ANSWER SECTION:
google.com.		24	IN	A	216.58.199.206

;; Query time: 116 msec
;; SERVER: 8.8.8.8#53(8.8.8.8)
;; WHEN: Tue Feb 23 10:52:42 ICT 2016
;; MSG SIZE  rcvd: 55

DNS round robin

mail    IN  A       192.168.0.4
        IN  A       192.168.0.5
        IN  A       192.168.0.6
mail    A 192.168.0.4
mail    A 192.168.0.5
mail    A 192.168.0.6
mail    A 192.168.0.5
mail    A 192.168.0.6
mail    A 192.168.0.4
mail    A 192.168.0.6
mail    A 192.168.0.4
mail    A 192.168.0.5
mail    A 192.168.0.4
mail    A 192.168.0.5
mail    A 192.168.0.6

...

Bind and security

Tips

Non privilege user handled by package

Option version none ;

TSIG

Transaction signature

Hash + secret + hour

Configured in named.conf

TSIG : generating secret

$ dnssec-keygen -a hmac-sha256 -b 128 -n HOST s1-s2.
Ks1-s2.+163+22242
$ cat Ks1-s2.+163+22242.key
s1-s2. IN KEY 512 3 163 6Bmt+px0gMyIznRcv+Xg2A==
$ cat Ks1-s2.+163+22242.private

TSIG and named.conf

key s1-s2.
{
  algorithm hmac-sha256 ;
  secret "6Bmt+px0gMyIznRcv+Xg2A==" ;
} ;

server 198.51.100.33
# s2 IP address
{
  keys
  {
    s1-s2. ;
  } ;
};

Idem on s2

DNSSEC

Questions ?
