interface version 1
Tapers and/or flares geometry.
This is a replacement operator for the “taper” mode of the Twist SOP.

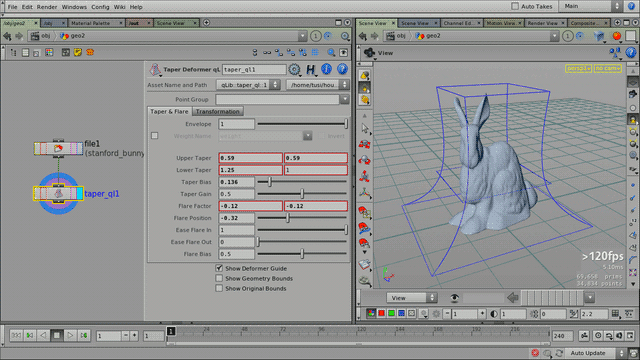

A taper deformation applied to the Stanford Bunny.
Parameters
| Upper Taper | Scale of the taper operation at the top of the deforming region. |
| Lower Taper | Scale of the taper operation at the bottom of the deforming region. |
| Taper Gain | Standard gain modifier for the taper operation. |
| Taper Bias | Standard bias modifier for the taper operation. Note The bias modifier is not self-symmetric, so you might want to flip the deformer to achieve certain deformations. |
| Flare Factor | The amount of additive flare somewhere between the two taper ends. |
| Flare Position | The position of the flare. |
| Ease Flare In | Ease of the flare in the middle. If its 1 the flare is smooth. |
| Ease Flare Out | Ease of the flare im the two endpoints of the deformer. If its 1 then the flare starts smoothly. |
| Flare Bias | Standard bias modifier for the flare. It can be used two 'weight' the flare’s distribution. |
Release Notes
interface version 1 —
| 2014-02-22 |
|
| 2014-02-04 |
|
| 2013-01-03 | Flare become an additive operation, so it doesn’t cause linearity problems. New flare factor default is 0. Help card added. |
