Continuous Delivery
(2DV611)
Continuous Integration
License for this work
This work is produced by Jacob Lindehoff for the course Continuous Delivery (2DV611) at Linnaeus University.
All content in this work excluding photographs, icons, picture of course literature and Linnaeus University logotype and symbol, is licensed under a
Creative Commons Attribution 4.0 International License
You are free to
- copy and redistribute the material in any medium or format
- spread the whole or parts of the content
- show the whole or parts of the content publicly and digital
- convert the content to another format
- change the content
If you change the content do not use the photographs, icons, picture of the course literature or Linnaeus University logotype and symbol in your new work!
At all times you must give credit to: ”Linnaeus university – Continuous Delivery (2DV611)” with the link https://coursepress.lnu.se/kurs/continuous-delivery/ and to the Creative Common-license above.
Content
- Continuous Integration
- Definition (again)
- Commit Stage
- CI servers
- Some kind of demo...
- Branching vs Continuous Integration
- Patterns
- Merging, rebasing
- Is branching bad?
Continuous Integration
- Regular integration of code base
- Avoid integration debts
- 1999ish, Kent Beck, "extreme programming explained"
- The phrase has been used earlier
- Keep the software at working state all the time
- Without CI - Software is broken until proven it works
- With CI - Software works until it broken
- Key concepts
- Single source repository
- Automated builds (CI -server)
- Self-testing
- Agreement of the team
Best practices
- Check in regularly
- A couple of times per day
- Every developer!
- This means smaller changes
- Less chance of breaking the build
- Refactor discipline, preserve behavior of the software
- Regular breaks from code mode, avoid tunnel vision
- Fix broken build fast
- Don´t check in on a broken build
- Have a plan, confidence in fixing broken builds
- Be prepared to revert
- Can´t fix the problem in 10 minutes - revert
- Don´t comment out the tests
- A couple of times per day
Best practices
- The one that check in must monitor the build process
- Should not start new work until build is OK
- No lunch, Don´t go home...
- Should not start new work until build is OK
- Everyone should see the latest build
- No blame game...
- Run tests both at the developer and in the CI server
- Update from VCS, easy to get the latest version
- Run tests and build, keep it fast
- Commit - Push
- Test in production environment
- Automate the deployment?
Start with the commit stage
- The entrance to the deployment pipeline (on success)
- Early testing => Fast feedback
- Even in the IDE (unit test, lint, syntax, style checking, code quality)
- Tools (CI servers) that makes pretested commits
- What should break the build?
- Code coverage? Warnings? Numbers of ToDos?
- Have a Build master?
- Rotating role in big teams
- When introducing the pipeline to a team
- Early testing => Fast feedback
About testing in the commit step
- Test pyramid
- Avoid UI testing
- Avoid hitting DB
- Mocks and stubs
- Use dependency injections
- Keep it fast, keep it short
- If it take to long time people will ignore it
- Risk of getting multiple commits in the pipeline
CI - software
- Long-running process
- Execute workflows at regular intervals
- Pull changes from VCS
- Pulls on triggers (e.g. web hooks)
- Jobs/Stages trigger other jobs/stages
- Building, testing, running scripts
- Building pipelines
- A view of the build and test result
- Everyone should see the status
- Test coverage, performance, analyses
- Green/red - integration with physical things?
- Everyone should see the status
- Artifact repository often included (some kind of)
- There are commercial systems
- like JFrogs "Artifactory"
- Version control, tagging, pinning and so on
- There are commercial systems
CI servers

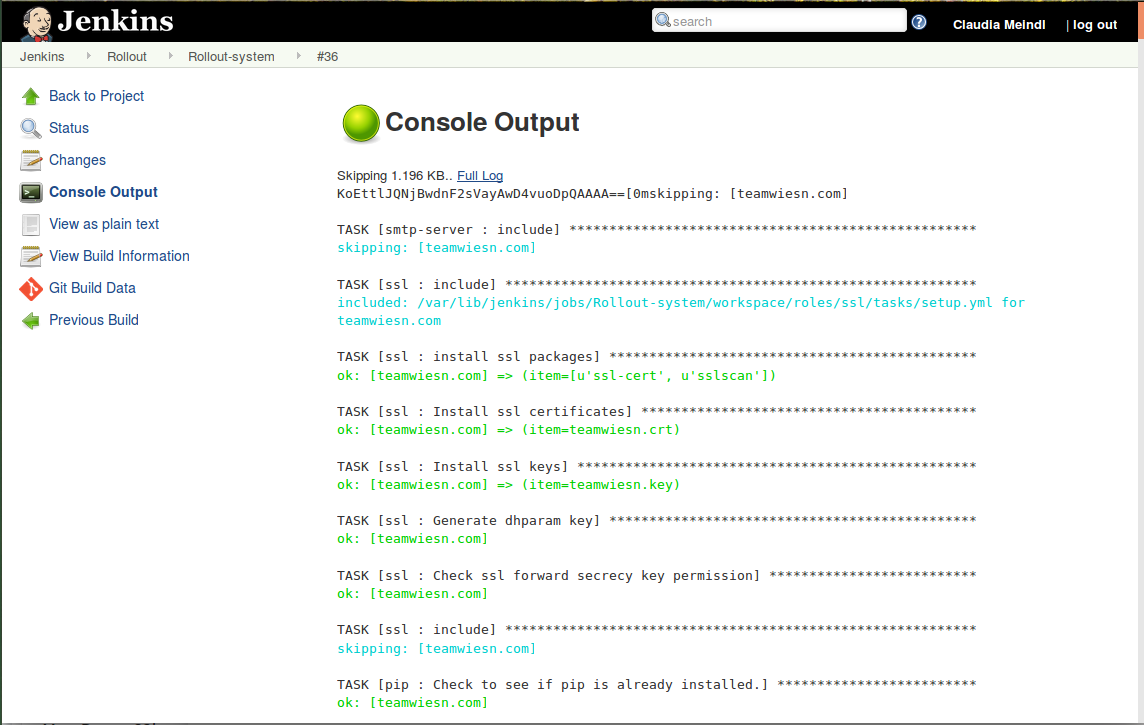

- Jenkins
- Open source, JAVA, Mature, Most popular?
- Forked from Hudson 2011 (Oracle claimed the name)
- Flexible with lots and lots of plugin
- Web UI
- REST API, Jenkinsfile (groovy)
- Open source, JAVA, Mature, Most popular?
CI servers

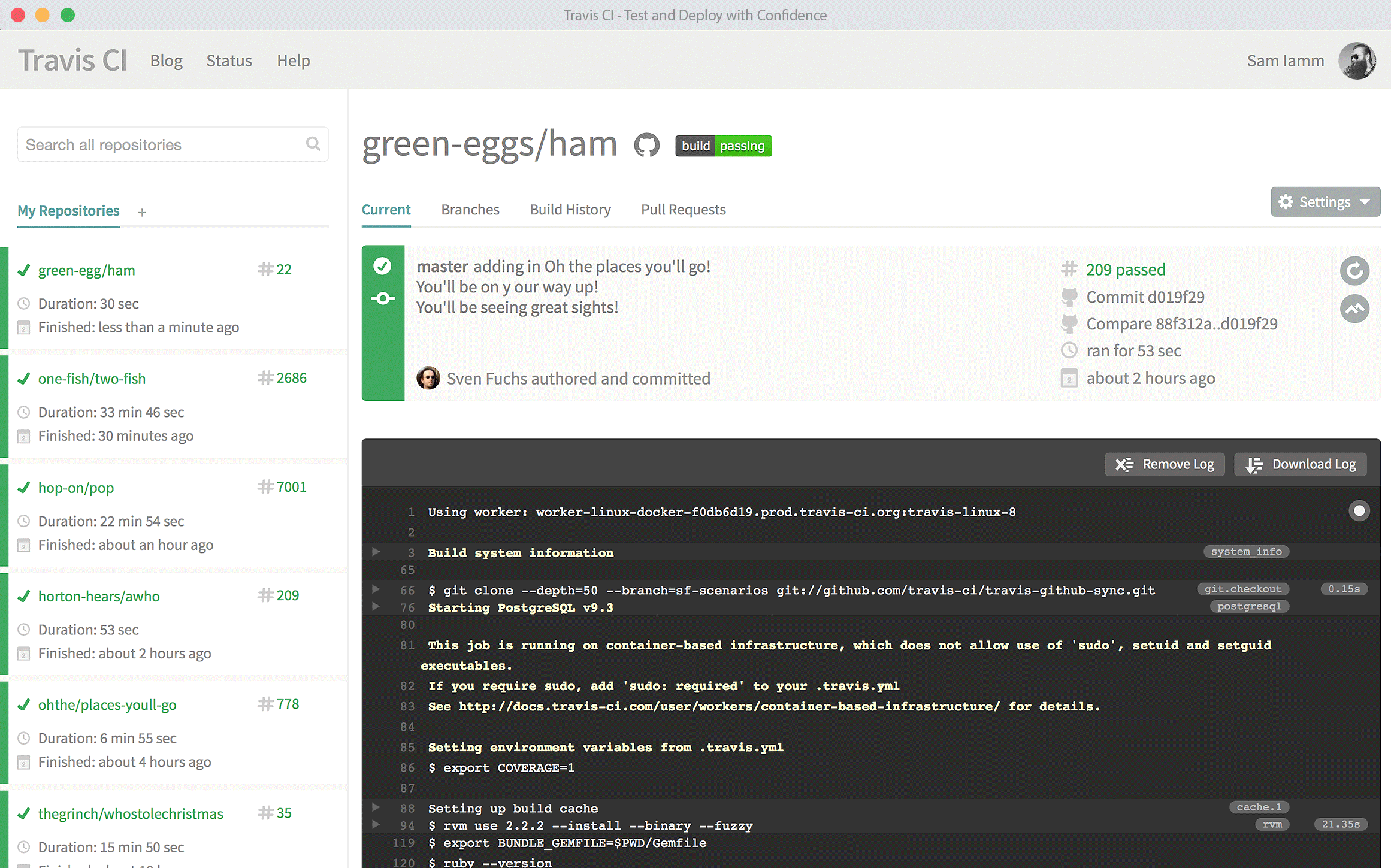

- Travis CI
- SAAS, https://travis-ci.org/
- Build and test projects on GitHub
- Try it through "GitHub education pack"
- Free for open source projects
- travis.yml - root at the repository
CI servers

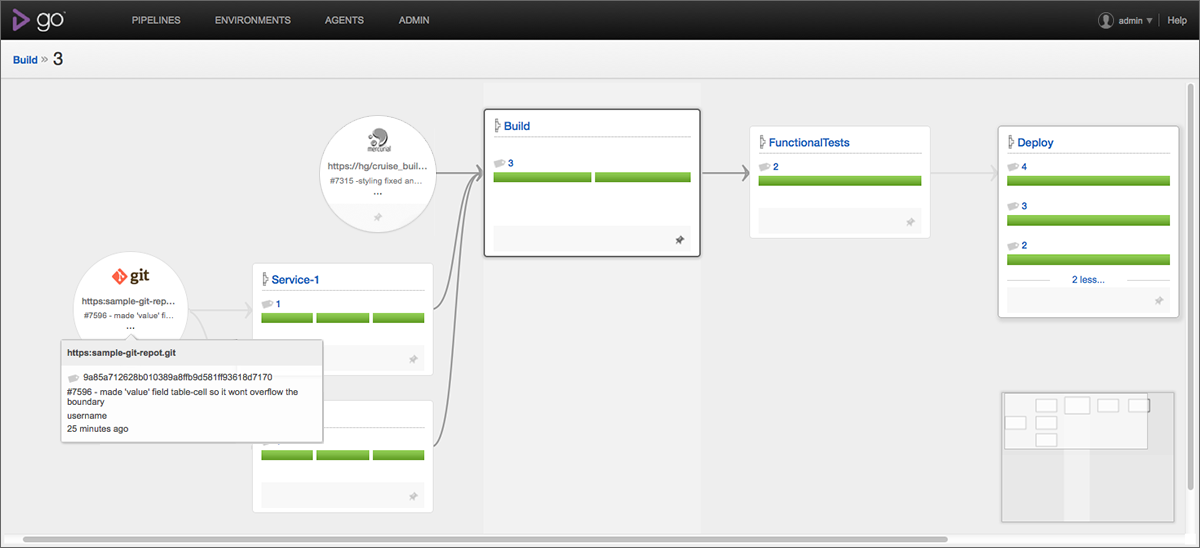

- Go CD
- ThoughtWorks company
- Free of charge, support costs
- Include the concepts of more complex pipelines
CI servers
- Others
- TeamCity
- JetBrain, Mature, enterprise, best .NET support
- Bamboo
- Atlassian, JIRA and Bitbucket, Also as cloud service
- CircleCI
- Cloud service, GitHub, Docker support, Fast and cheap
- CodeShip
- Cloud service, Pro versions have Docker support
- TeamCity
Source: https://www.code-maze.com/top-8-continuous-integration-tools/
Some kind of demo
Showing a dummy node.js application on Jenkins with code coverage, lint, style check (standard.js) and some testing
How to work in your pipeline?
Always releasable - How?
- Start from scratch
- No releasable artifacts?
- Be pragmatic
- But use the pipeline and workflows as fast as you can
- How to implement features that take a while to develop
- Pure CI?
- Use feature hiding/toggle/branch by abstraction
- But my VCS do have branches...
- Many people work with the code base - avoid disturbing work
- Non releasable code in branches?
- Is branches bad?
- Many people work with the code base - avoid disturbing work
- Pure CI?
How to work with your VCS
- Not only version control, also how to work in a team
- Many team members
- Coordinate and optimize code updates
- Branching
- Make a branch to keep work isolated
- Lots of different branch patterns
- Never have long-lived branches
- Merging
- Bringing branches together, applying the changes
- Risk of merge conflicts - time consuming
- What is the right code to merge in a conflict?
- Semantic conflicts - Rename the class while adding class references
- More branches smaller changes?
- Merge often!

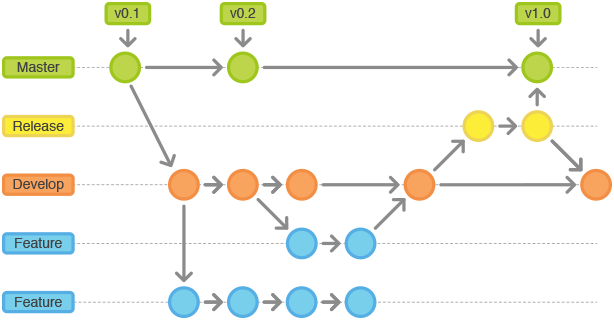

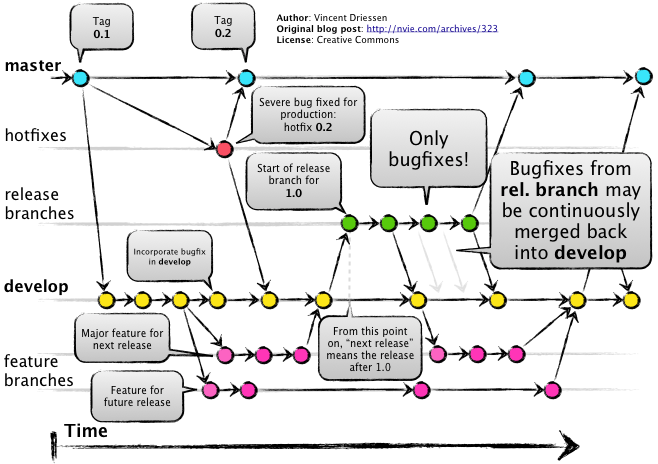

Branching patterns/workflows
- Develop on mainline/master
- Release branches
- Story/Feature branches
git checkout -b newFeature master
- Team branches
Develop on master
- All check/push code into master
- This ensure CI, changes handled directly
- Avoid merge- and integration hell
- Rarely use branches
- Release branches
- Spikes
- Test how much work to solve or work around a issue
- Letting people getting familiar with new tools...
- Never merge back to master
- Bug fixes in master

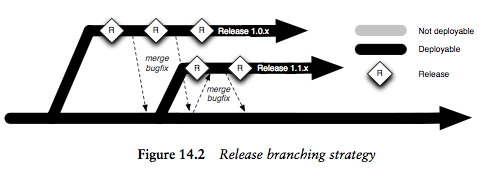

Release branches
- Acceptable to create branch short before a release
- Only add critical bug fixes
- Merge these directly to master
- New development and features always goes into master
- Dev can start work direct after release branch
- Tag the branch on release
- Could be tricky in large teams
- Modularity in the code helps
- API interfaces between components
- If you do once-a-week releases it may be cheaper with check into master
Image from: Continuous Delivery, Humble and Farley
Story/Feature branches
- Every story or feature will be a branch
- After completion and testing - merge into master
- Keeps the master clean - Check-ins won´t interfere
- Branches must be short lived!
- Limit the number of open branches!
- Could use "pull requests"
Team branches
- Try solving the problem with big teams
- Create small teams with own branch
- Merge from master daily
- When story is done, stabilize the branch, merge to master
- Run all kind of tests
- Make release
- Create small teams with own branch

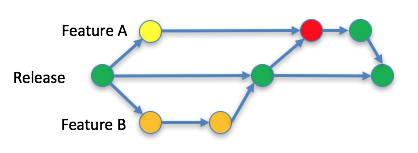

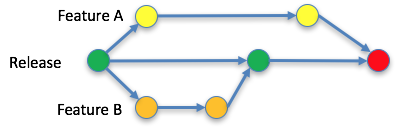

Is branching against CI?
- No, not if handle right
- Release branching is fine
- Feature branching could be antithetical to CI!
- Could easy become an anti-pattern
Solutions?
- Use CI servers
- No long-lived branches! No long-lived branches!
- NO LONG-LIVED BRANCHES!
- Size of the group?
- Feature branching will work if carefully
- Start with checking into master or release branching
- Always do real testing on you branches before merging (into master branch)
- Rebase from master branch before running tests to catch changes
- Could pollute the branch if active master branch
- Find your solution, the release process should be seamless
- Bring the pain forward...
More
Git commands you need to know
git checkout
git merge
git rebase
git reflog
git reset
git log
git revert
Reading
Chapter 3, 5, 7 and 14 (skip Distribution version control systems) in the Continuous Delivery book by Humble and Farley
