Server-based Web Programming
(1DV023/1DV523)
Lecture
Real-time web
Licence for this work
This work is produced by John Häggerud for the course Server-based Web Programming (1DV023) at Linnaeus University.
All content in this work excluding photographs, icons, picture of course literature and Linnaeus University logotype and symbol, is licenced under a
Creative Commons Attribution 4.0 International License.
You are free to
- copy and redistribute the material in any medium or format
- spread the whole or parts of the content
- show the whole or parts of the content publicly and digital
- convert the content to another format
- change the content
If you change the content do not use the photographs, icons, picture of the course literature or Linnaeus University logotype and symbol in your new work!
At all times you must give credit to: ”Linnaeus university – Server-based Web Programming (1DV023)” with the link https://coursepress.lnu.se/kurs/serverbaserad-webbprogrammering/ and to the Creative Common-license above.
Content
- What is real-time web
- Definition
- Examples of real-time web applications
- Examination assignment 3
- Technologies for real-time web applications
- History, problems, today
- Real-time for the Node platform
Definition
Real-time web applications is clients receives data updates in a short time interval after the data is changed/created and without need for additional requests.
- What do we mean by short time? (definitions from wikipedia)
- Hard – missing a deadline is a total system failure.
- Firm – infrequent deadline misses are tolerable, but may degrade the system's quality of service. The usefulness of a result is zero after its deadline.
- Soft – the usefulness of a result degrades after its deadline, thereby degrading the system's quality of service.
- Broadcast to many clients
- Lots of different techniques (and hacks) for web applications
- Not the way the web was intended to work!
What kind of applications...
- Web-based games
- Social communication
- Chat, Live comments, feeds...

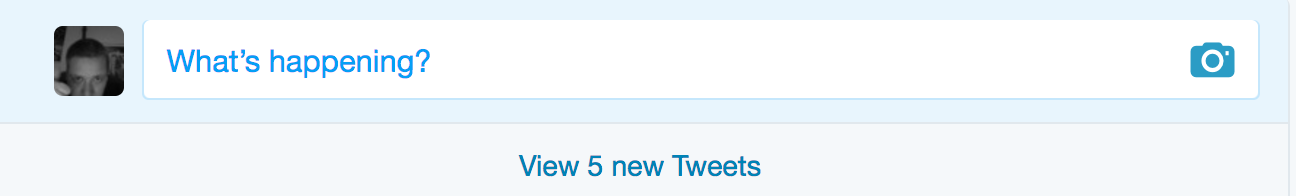

- Notifications
- Collaboration tools
What kind of applications...
- 2nd Screen Experience
- Activity streams (live comments)
- Statistics
- Live sport
- Video game extras
- Voting, Peer-instructions
What kind of applications...
- Decision making
- Trading
- Automatic price adjusting
- Monitoring infrastructure and application
- Users, servers...
Change of paradigm?
- Notifications by default
- How do you expect your mobile app to work?
- Web of things?
- Devices communicating in realtime
- Real-time API - Streaming API
- Twitter, Google, Slack

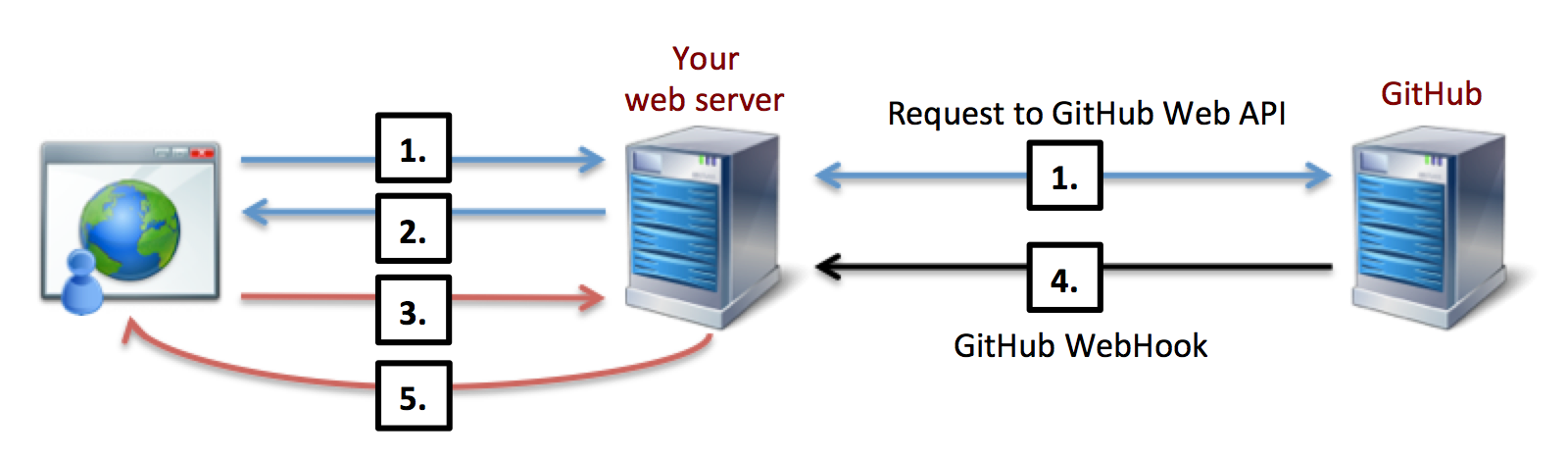

Examination assignment 3
- Create an application that checks issues in your repository/repositories
- Fetching issue information from Git**b Web API
- Read documentation and understand how to authenticate
- Monitoring events From Git**b (issues)
- Registration and using Git**b web hooks
- Sending real-time events to client from "your server"
- Own features? OAuth, communication from client...
- Fetching issue information from Git**b Web API
- Put the application in production
Technologies for real-time web

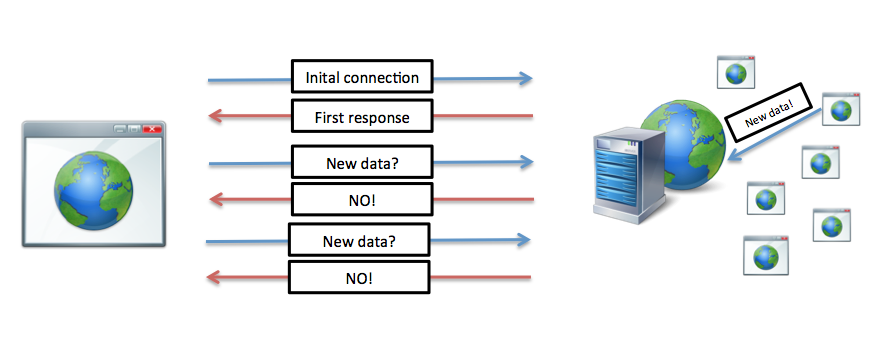

The problem with HTTP...
...In realtime scenario
History
- JAVA Applets (Netscape 2.0 - 1996)
- Java virtual machine
- Raw TCP socket
- Flash platform
- RTMP servers, Shared Objects
- Flash client
- "Flash Player has been deprecated and has an official end-of-life at the end of 2020"
- Silverlight (.NET)
- Well...(no more development since 2013)
HTML and JavaScript
- Comet (umbrella term)
- Techniques that goes around the HTTP 1.1 spec. and browser implementations
- Persistent HTTP connections, Domain sharding...
- Long-lived hidden iframe
- XHR long polling
- XHR streaming
- Techniques that goes around the HTTP 1.1 spec. and browser implementations
- Server-sent events (HTML5)
- No IE or Edge (https://caniuse.com/#feat=eventsource)
- Just from server, no bi-directional or full duplex (combine with XHR)
- WebSocket

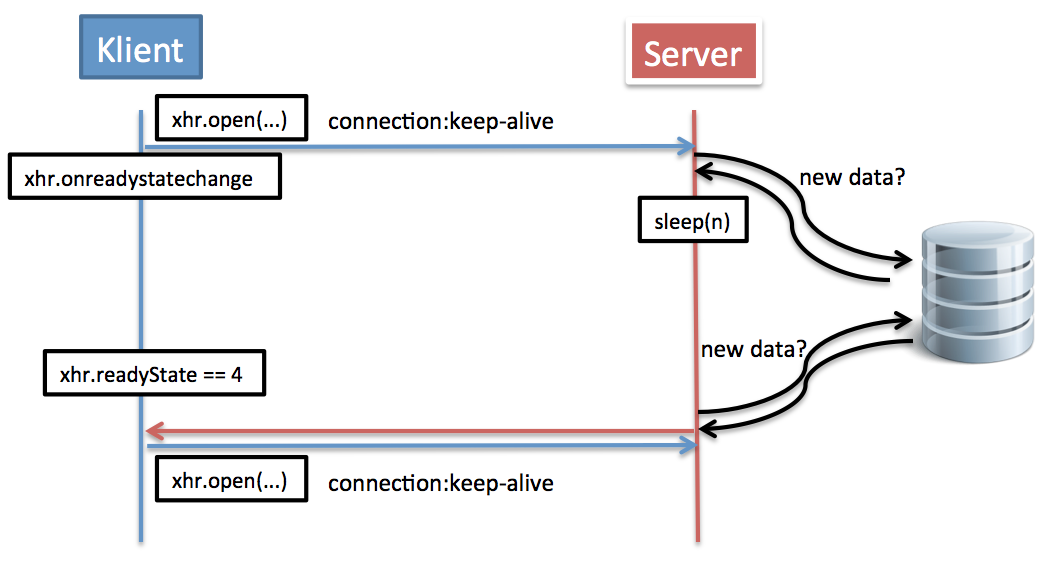

XHR Long polling

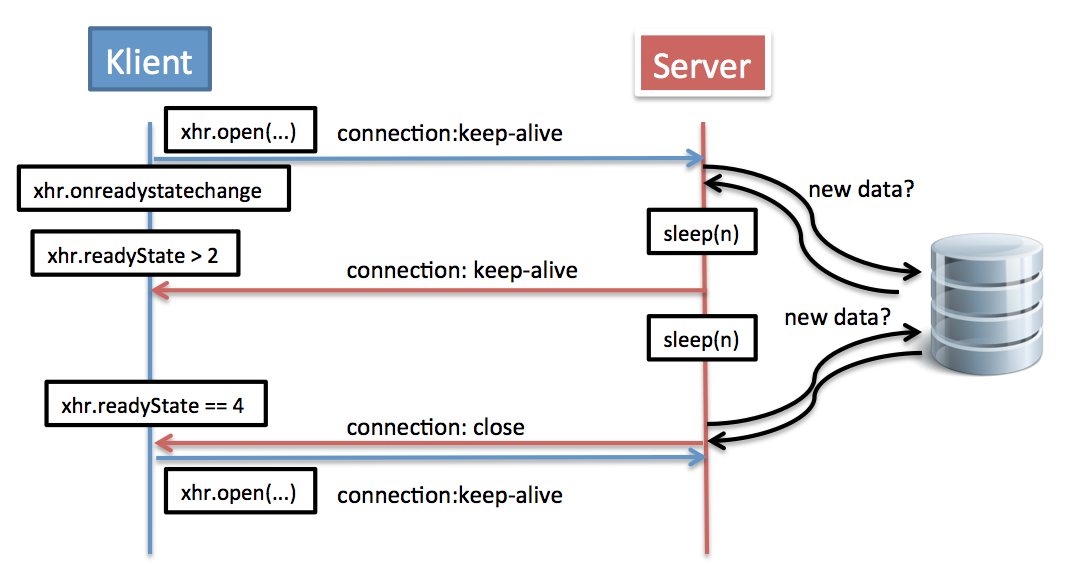

XHR Streaming
- "Transfer Encoding: chunked"
- Don´t need to open new connection when data is received
WebSocket
- Socket?
- Connect on HTTP(S), Upgrade to ws:// or wss://
- Firewalls, proxies? Default port 80/443
- Two-way communication, full-duplex
- Text or/and binary data
- IETF Standard, RFC 6455, 2011,
- WebSocket API for browsers, W3C
- Security
- Use Content Security Policy
- Encryption with wss://
WebSocket server on node platform
- Socket.io (https://socket.io/)
- ws (https://www.npmjs.com/package/ws)
- ...
https://blog.bitsrc.io/8-node-js-web-socket-libraries-for-2018-818e7e5b67cf
Challenges with web sockets
- Browser support
- Fallback strategies
- Concurrency
- Synchronization
- Fault-tolerant?
- Offline, Queue-strategies
Other architectures...
- Client-to-Server
- What I just said...
- Client-to-Client
- P2P (peer-to-peer)
- WebRTC
- Server-to-server
- web hooks

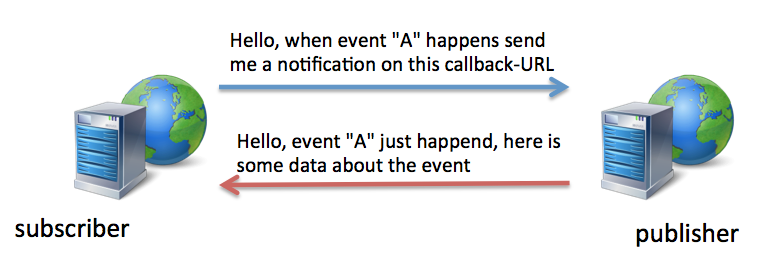

Web Hooks, Server to server
Next time
- No more lectures
- Pre-recorded demos
- Bringing the application to production
- A virtual machine on our cloud
- SSH-key and public IP
- A virtual machine on our cloud
