What is Web Application Architecture?

• When applications grows we need structure.
• Architecture can help us with structuring, physical and logical.
• At least two parts, the server and the client.
  • The code which lives on the server and responds to HTTP requests.
  • The code which lives in the browser and responds to user actions.
• It's up to the developer to decide what the code on the server and the client should do.
  • Server-side code.
    • Ruby, C#, Python, PHP, Java, JavaScript
    • Never seen by the client, persistent data, creates dynamic content, etc.
  • Client-side code.
    • HTML, CSS, JavaScript

Minimal "hello, world"

const http = require('http')

const server = http.createServer((req, res) => {
  res.setHeader('Content-Type', 'text/plain')
  res.end('hello, world\n')
})

server.listen(8000, () => console.log('Server running at http://localhost:8000/'))

• The build-in http module allows Node to transfer data over HTTP.
• Event-driven programing.
  • The event being handled is an HTTP request.
• The createServer method takes a function as an argument; that function will be invoked every time an HTTP request is made.
  • Creates an HTTP server that listens to server ports and gives a response back to the client.

Minimal website with simple routing (1 of 2)

const http = require('http')

http.createServer((req, res) => {
  const path = req.url.replace(/\/?(?:\?.*)?$/, '').toLowerCase()

  switch (path) {
    case '':
      res.setHeader('Content-Type', 'text/plain')
      res.end('Homepage')
      break

    case '/about':
      res.setHeader('Content-Type', 'text/plain')
      res.end('About')
      break

    default:
      res.setHeader('Content-Type', 'text/plain')
      res.statusCode = 404
      res.end('Not Found')
      break
  }
}).listen(8000, () => console.log('Server running at http://localhost:8000/'))

Minimal website with simple routing (2 of 2)

• Routing is the mechanism for serving the client with the requested content.
  • It's possible to browse to http://localhost:8000 and http://localhost:8000/about (query strings will be ignored). Any other URL will get a response with status code 404.
• The complexity increases rapidly. We need something that makes it some what easier.

Stack

• A functional web application depends on multiple pieces of technology.
• Acronyms describe "stacks", development environments.
  • LAMP, WAMP, …
• Full stack JavaScript Development
  • Both client- and server-side should be written in JavaScript.
  • MEAN (MongoDB, Express, Angular, Node.js), MERN, ...

Full stack JavaScript Development

During the course we will use...

• HTML, CSS and vanilla JavaScript on the client.
• Node.js and Express (with Handlebars as the view engine) on the server.
• MongoDB as document database.

JavaScript Backend Frameworks

• Express, https://expressjs.com/
• Meteor, https://www.meteor.com/
• Sails (built on Express), https://sailsjs.com/
• Feathers (built on Express), https://feathersjs.com/
• Fastify, https://www.fastify.io
• ...

What is Express?

• "A minimal and flexible Node.js web application framework."
  • Node.js has a lot of common with other web servers, but most interesting is how it differs.
    • Easy to setup and configure.
    • Node.js is single threaded.
    • Platform independent.
• Inspired by Sinatra, a web application framework in Ruby.
• Intertwined with Connect, a pluggable Node module that can handle web requests (a.k.a. "middleware").

Minimal Express website

const express = require('express')

const app = express()

app.get('/', (req, res) => res.send('Homepage'))
app.get('/about', (req, res) => res.send('About'))

app.listen(8000, () => console.log('Server running at http://localhost:8000/'))

• The application starts a server and listens on port 8000 for connections.
• The framework will handle the request.
  • The application responds with "Homepage" for requests to the root URL (/).
  • The application responds with "About" for requests to the about URL (/about).
  • For any other request, it will respond with a 404 Not Found.

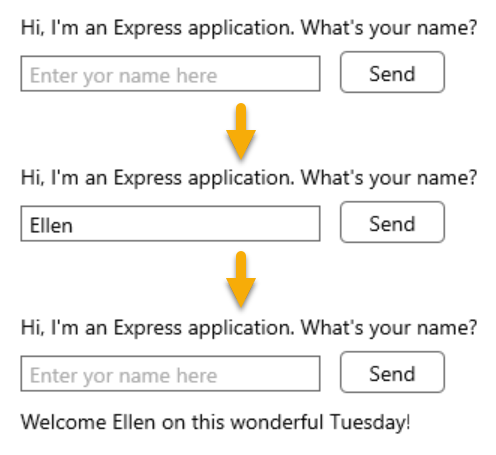

"Mockup" of your first Express Application

1. The user requests a suitable URL...
2. ...enters a name and posts the form.
3. The server responds with a welcome message.

Overview of your first Express Application

The final directory structure

• app.js is the applications entry point.
• Routes are stored in separate modules under the routes/ directory.
• Controllers are stored under the controllers/ directory.
• View templates are stored under the views/ directory.
• Static files are stored under the public/ directory.
• ...and there are several other opinions.

The dependencies

• express
  • Web framework for Node.js.
• express-hbs
  • Express handlebars template engine.
• moment
  • Manage dates.
• morgan
  • HTTP request logger.
• nodemon
  • Automatically restarts the application when file changes.
    • nodemonConfig

The entry point

• Middleware functions are functions that have access to the request object (req), the response object (res), and the next middleware function in the application’s request-response cycle.
  • Application-level: app.use() and app.METHOD(), (req, res, next)).
  • Router-level: same as application-level (use express.Router()).
  • Error-handling: an error-handling middleware function has four parameters, (err, req, res, next)).
  • Built-in: express.static, express.urlencoded
  • Third-party: Add functionality.

The routing

• The router.get() and router.post() methods are two routing functions in Express.
• You provide a function to be called for a request matching the method and specified path.
• You use the router object as an argument to app.use().
  • app.use('/', require('./routes/homeRouter')) http://localhost:8000/
  • app.use('/home', require('./routes/homeRouter')) http://localhost:8000/home

The controller

• Controller functions...
  • ...get the requested data (if any), ...
  • ...render an HTML page using a template engine, and...
  • ...send the HTML to the client.
• res.render(view [, locals]) renders a view and sends the HTML string to the client.
  • view, the path of the view file to render.
  • locals (optional), an object that contains data (viewData) to pass from the controller to the view.

The view

• A template engine enables you to transform a template to HTML sent to the client.
• Express supports several template engines, such as Pug, Mustache, and EJS.
• We will take a closer look at Express handlebars template engine (express-hbs) with multiple layouts, blocks and partials.
  • Find out more about handlebars expressions at https://handlebarsjs.com/.

Installation and configuration

• Install express.hbs.
  • npm install express-hbs
• Configure the template engine to use .hbs for extensions and find layouts in views/layouts.
• Setting the view engine as handlebars and the root directory for the views.


The template engine

What's next?

• Persistent data
  • MongoDB - document database
    • Mongoose - object modeling tool
  • Models
  • Create, Read, Update, Delete (CRUD) - four basic functions of persistent storage
• Session
  • Post/Redirect/Get (PRG) - web development design pattern
  • Flash messages
